Hard Stainless Steel Coil Wire 409L 410 420 430 440A 0.05-20mm

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Stainless Steel Wire 409L 410 420 430 440A 400 Series Hard Wire | Grade | 409L 410 420 430 440A |
---|---|---|---|
Standard | ASTM/AISI, JIS, DIN, GB | Wire Gauge | 0.05-20mm |
Length | No Limited,or As Per Requested | Si Content (%) | Standard Level |
Application | Spring, Screw, Weaving, Manufacturing, Etc. | ||
Highlight | Hard stainless steel coil wire,stainless steel coil wire 409L 410,409L 410 1mm SS Wire |
Stainless Steel Wire 409L 410 420 430 440A 400 Series Hard Wire
Stainless steel wire is the raw material for screws, springs, metallic net, cable wire and hardware.
It is widely used in filter, building and important for electronic parts, oil and fiber industry, kitchenware and hardware.
Stainless steel is the most unique of the common vaping wires.
It can pull double duty and be used for straight wattage vaping or temp control vaping.
Stainless steel wire is an alloy composed primarily of chromium, nickel, and carbon.
Soft Annealed Stainless Steel Wire:
mm Dia. | N/mm2 T/S | EL % |
0.05-0.10 | 650-900 | >15 |
0.10-030 | 640-880 | >20 |
0.30-0.60 | 590-860 | >30 |
0.60-1.60 | 540-820 | >30 |
1.60-5.00 | 520-770 | >30 |
Hardness Stainless Steel Wire:
1/4H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 0.05-1.60 | 830 -1180 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 1.60-3.00 | 780 -1130 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 3.00-6.00 | 730 -1080 |
1/2H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316L/sus201/430 | 0.05-1.60 | 1130 -1470 |
Sus304/sus304H/sus316L/sus201/430 | 1.60-3.00 | 1080 -1420 |
Sus304/sus304H/sus316L/sus201/430 | 3.00-6.00 | 1080 -1420 |
3/4H full hardness stainless steel wire | ||
mm Dia. | (N/mm2)T/S | |
WPA3/4 | WPB | |
0.08-0.20 | 1650-1900 | 2150-2400 |
0.23-0.40 | 1600-1850 | 1950-2300 |
0.45-1.00 | 1530-1780 | 1850-2100 |
1.20-2.00 | 1400-1700 | 1650-2000 |
2.30-4.00 | 1230-1570 | 1450-1800 |

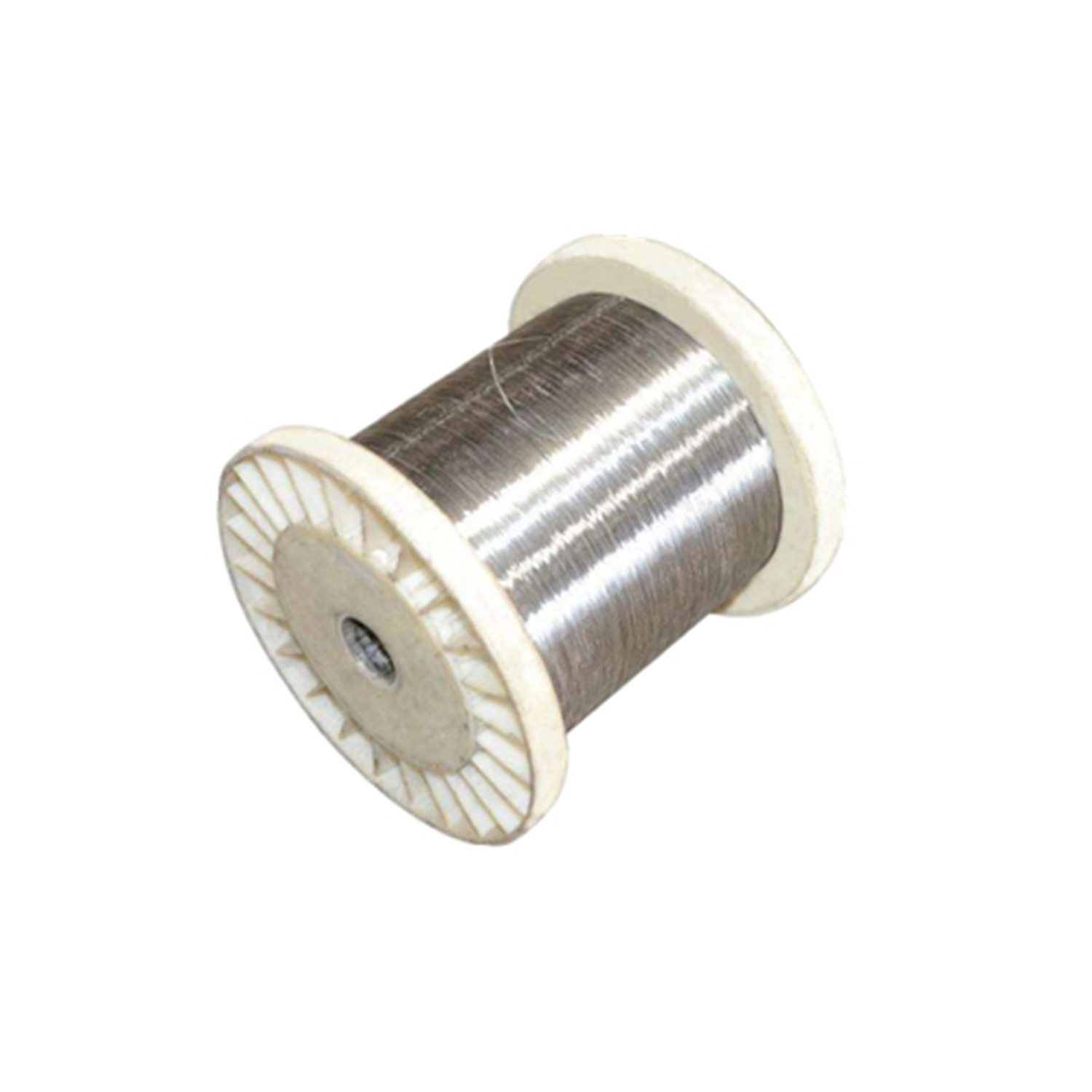

No. | Spool Model | Outer Diameter (d1) |
Trunk Diameter(d2) |
Inner Diameter(d3) |
Inner Height(L2) | Total height (L1) |
Weight of Spool | Rated load weight |
1 | DIN 125 | 125mm | 65mm | 20-25mm | 100mm | 120mm | 0.18kg | 2-3kg |
2 | DIN 160 | 160mm | 99.3mm | 22.03mm | 129mm | 160mm | 0.3kg | 5-7kg |
3 | DIN 200 | 200mm | 125.31mm | 23.06mm | 160mm | 200mm | 0.62-0.66kg | 10-15kg |
4 | DIN 250 | 250mm | 160mm | 20.73mm | 160mm | 200mm | 1kg | 20-25kg |
5 | NS-4 | 118.83mm | 75.4mm | 21.27mm | 129.33mm | 148.14mm | 2-3kg |
1. How can I get a quotation from you?
You can leave us message or send us a email and we will reply every message in time.
Or we may talk on line by skype & wechat.
And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course. Can send you small piece for you to check quality.
3. What is your delivery time?
A. The time of delivery is usually around 7-25 days according to the products you need.
4. What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L.
L/C is also acceptatble .
5. How can you garantee what I got will be good?
First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.
Also, we accept third-party test.
6. How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from
Looking for ideal stainless steel wire supplier ? We have a wide selection at good prices to help you get creative. All the stainless steel wires are quality guaranteed. We are China Origin Factory of Customized SS wire. If you have any question, please feel free to contact us.
