Annealed Soft 420 Stainless Steel Wire 1mm ASTM A580 Wire 304L 316L 410

Place of Origin China
Brand Name OEM
Model Number 304L 316L 410 420
Minimum Order Quantity 1 MT
Price USD 1500-3000 / MT
Packaging Details STANDARD EXPORT PACKAGE
Delivery Time 7-25 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 25000MT PER YEAR

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name ASTM A580 304L 316L 410 420 Stainless Steel Wire Annealed Soft Wire Rod Grade 304L 316L 410 420
Application Construction,spring,screw,weaving,Manufacturing Standard ASTM A580
Wire Gauge 0.05-20mm Length No Limited,or As Per Requested
Si Content (%) Standard Level
High Light

420 Stainless Steel Wire 1mm

,

Annealed ASTM A580 Wire

,

316L 410 SS Wire Rod

Leave a Message
Product Description

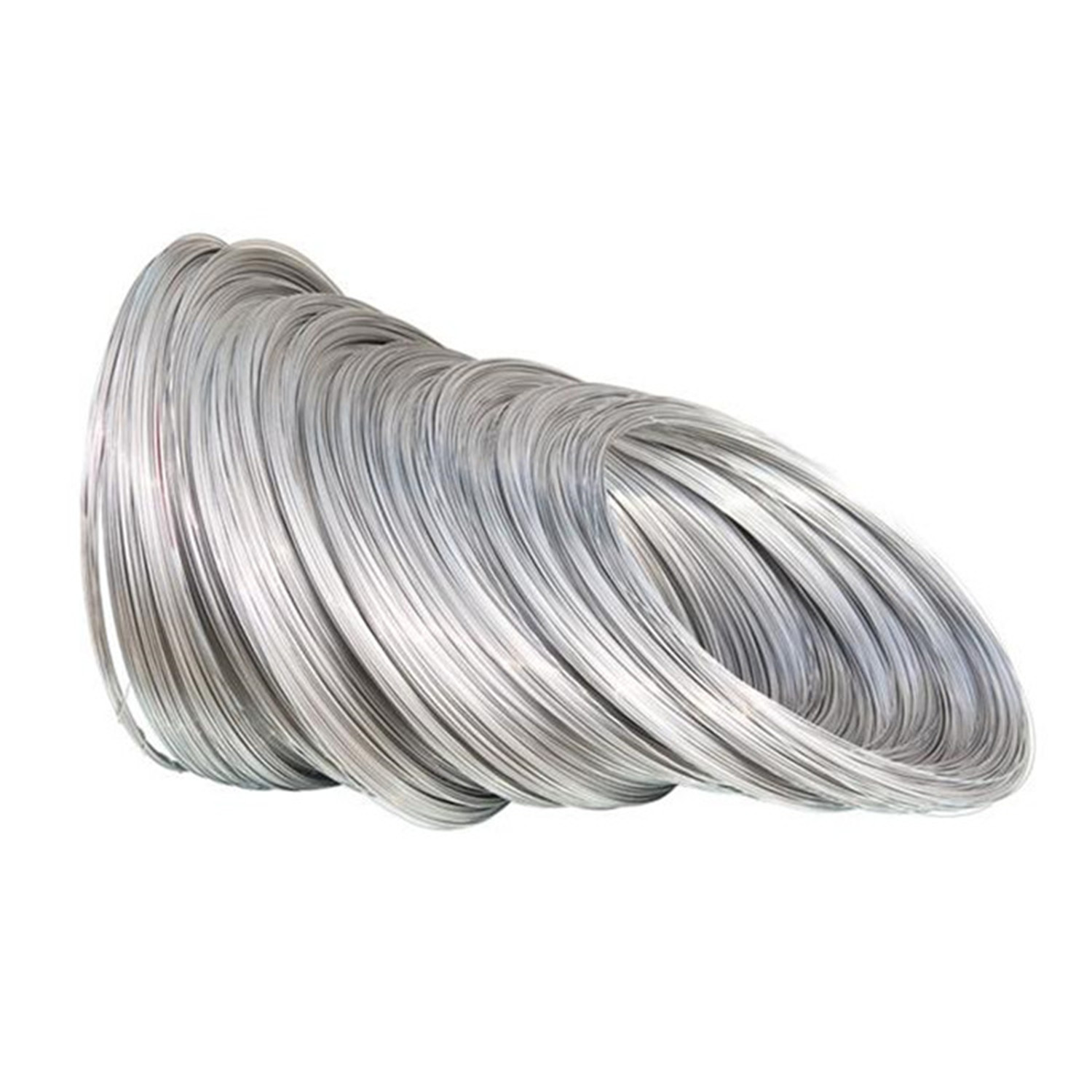

ASTM A580 304L 316L 410 420 Stainless Steel Wire Annealed Soft Wire Rod





What is ASTM A580?

This specification covers stainless steel wire, except the free-machining types.

It includes round, square, octagon, hexagon, and shape wire in coils only for the more commonly used types of stainless steels for general corrosion resistance and high-temperature service.





Soft Annealed Stainless Steel Wire:



mm Dia. N/mm2 T/S EL %
0.05-0.10 650-900 >15
0.10-030 640-880 >20
0.30-0.60 590-860 >30
0.60-1.60 540-820 >30
1.60-5.00 520-770 >30



Hardness Stainless Steel Wire:



1/4H stainless steel wire
Type Dia. MM T/S N/MM2
Sus304/sus304H/sus316/sus316L/sus201/430 0.05-1.60 830 -1180
Sus304/sus304H/sus316/sus316L/sus201/430 1.60-3.00 780 -1130
Sus304/sus304H/sus316/sus316L/sus201/430 3.00-6.00 730 -1080





1/2H stainless steel wire
Type Dia. MM T/S N/MM2
Sus304/sus304H/sus316L/sus201/430 0.05-1.60 1130 -1470
Sus304/sus304H/sus316L/sus201/430 1.60-3.00 1080 -1420
Sus304/sus304H/sus316L/sus201/430 3.00-6.00 1080 -1420





3/4H full hardness stainless steel wire
mm Dia. (N/mm2)T/S
WPA3/4 WPB
0.08-0.20 1650-1900 2150-2400
0.23-0.40 1600-1850 1950-2300
0.45-1.00 1530-1780 1850-2100
1.20-2.00 1400-1700 1650-2000
2.30-4.00 1230-1570 1450-1800



Annealed Soft 420 Stainless Steel Wire 1mm ASTM A580 Wire 304L 316L 410 0

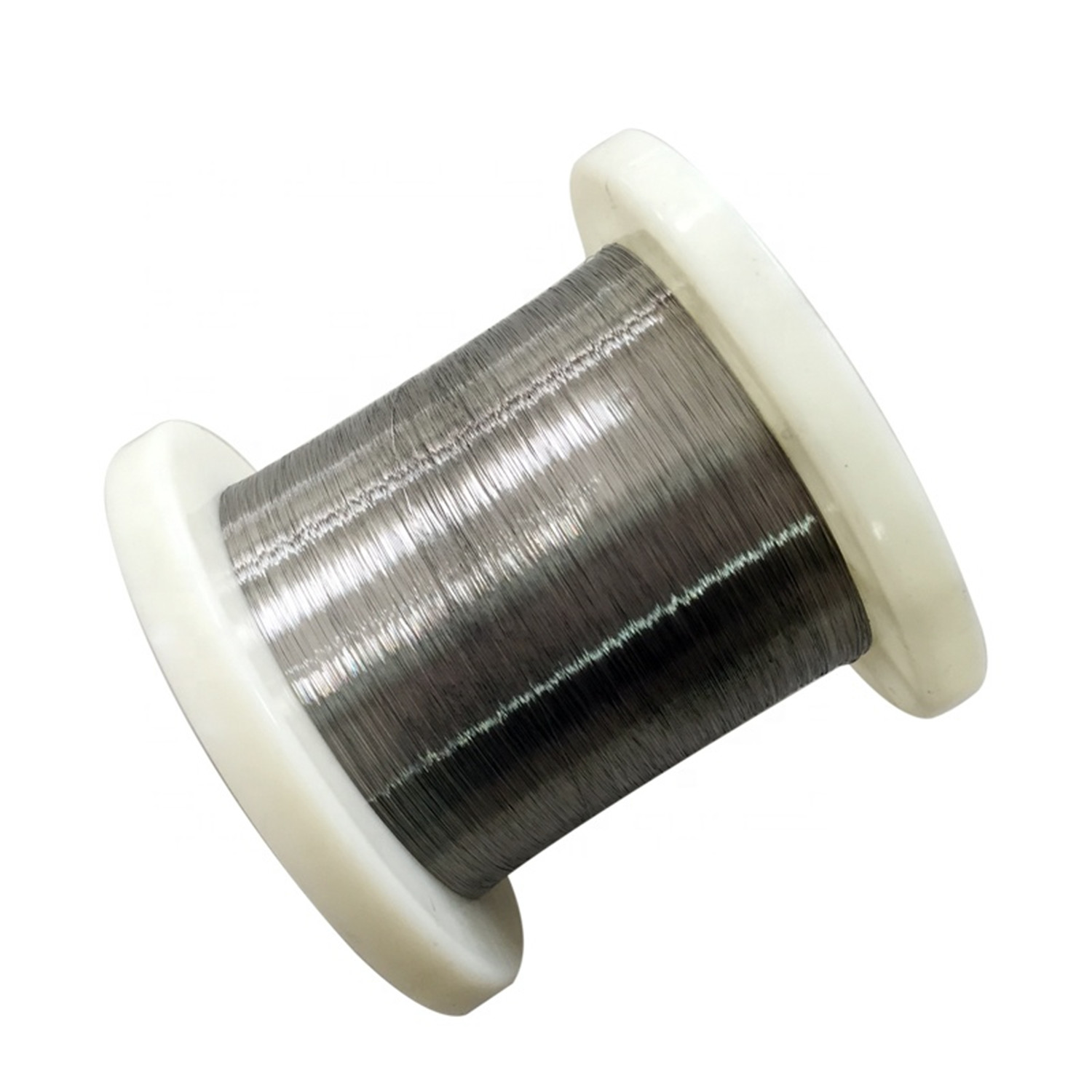

No. Spool Model Outer Diameter
(d1)
Trunk
Diameter(d2)
Inner
Diameter(d3)
Inner Height(L2) Total height
(L1)
Weight of Spool Rated load weight
1 DIN 125 125mm 65mm 20-25mm 100mm 120mm 0.18kg 2-3kg
2 DIN 160 160mm 99.3mm 22.03mm 129mm 160mm 0.3kg 5-7kg
3 DIN 200 200mm 125.31mm 23.06mm 160mm 200mm 0.62-0.66kg 10-15kg
4 DIN 250 250mm 160mm 20.73mm 160mm 200mm 1kg 20-25kg
5 NS-4 118.83mm 75.4mm 21.27mm 129.33mm 148.14mm   2-3kg

Annealed Soft 420 Stainless Steel Wire 1mm ASTM A580 Wire 304L 316L 410 1




304 Cold Rolled Stainless Steel Coil 2B Surface 0.1-3mm Thickness 3
1. How can I get a quotation from you?
You can leave us message or send us a email and we will reply every message in time.

Or we may talk on line by skype & wechat.
And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course. Can send you small piece for you to check quality.
3. What is your delivery time?
A. The time of delivery is usually around 7-25 days according to the products you need.
4. What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L.

L/C is also acceptatble .
5. How can you garantee what I got will be good?
First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.

Also, we accept third-party test.
6. How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from


Looking for ideal stainless steel wire supplier ? We have a wide selection at good prices to help you get creative. All the stainless steel wires are quality guaranteed. We are China Origin Factory of Customized SS wire. If you have any question, please feel free to contact us.
