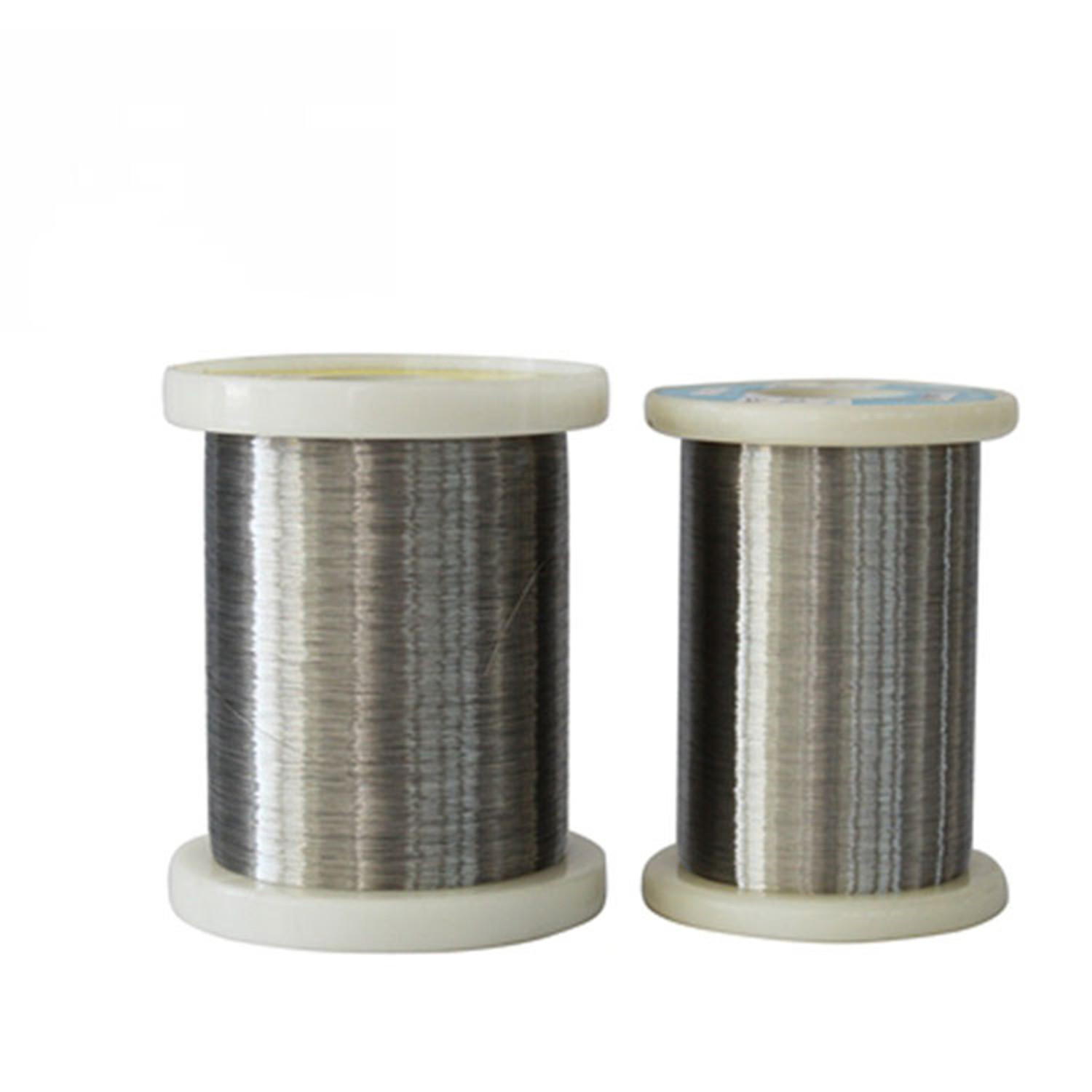

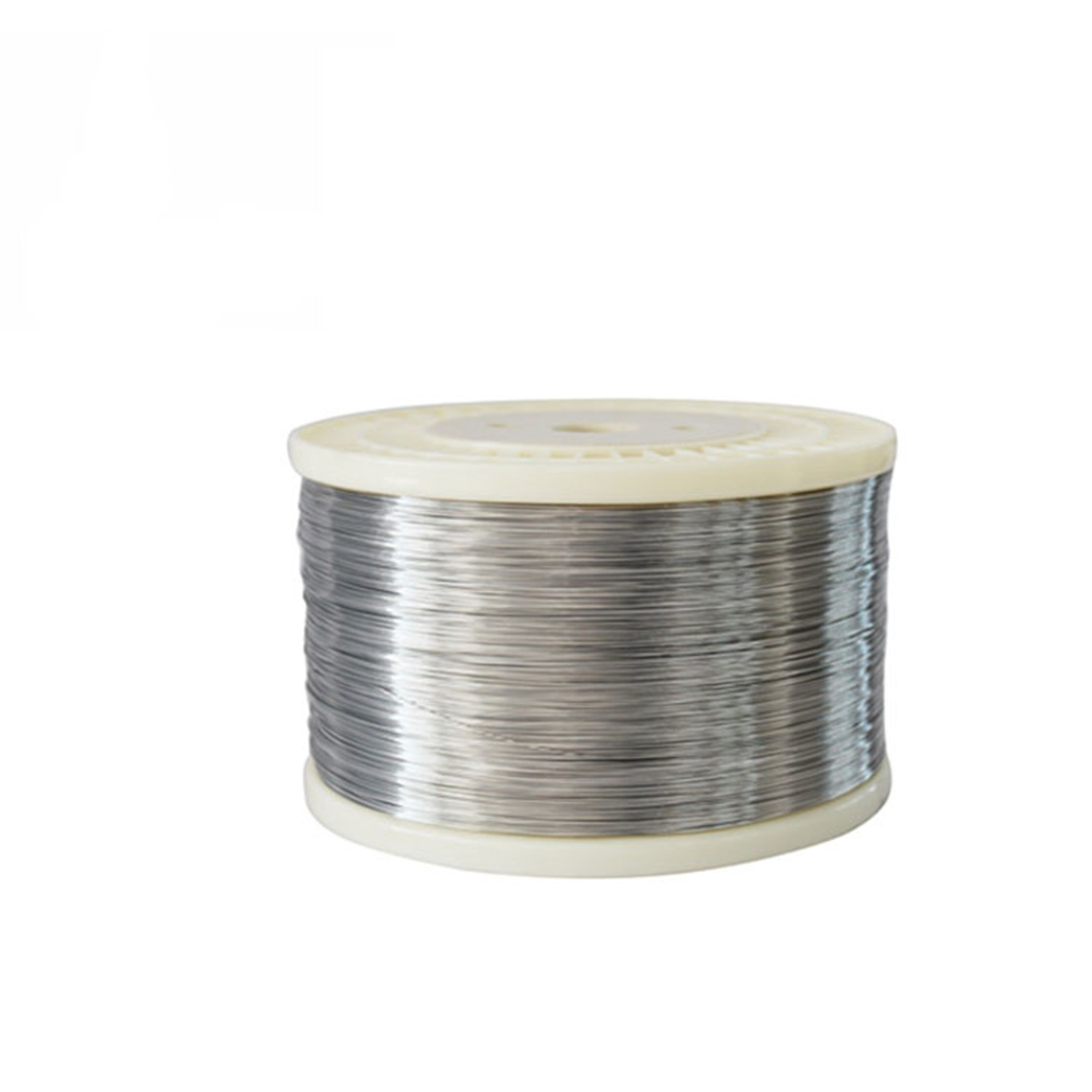

Cr30Ni70 Electrical Resistance Wire 2mm For Furnace Heater Resistor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cr30Ni70 NiCr7030 Electrical Resistance Wire For Heating Elements | Type | NiCr7030 |
|---|---|---|---|
| Round Wire | 0.05mm-10mm | Ribbon Thickness | 0.1mm -1.0mm |
| Ribbon Width | 0.5mm - 5.0mm | Carbon Content | Low Carbon |
| Condition | Bright, Annealed | Special Use | Furnace, Heater, Resistor |
| High Light | Cr30Ni70 Electrical Resistance Wire,Furnace Resistor Electrical Resistance Wire,Cr30Ni70 2 mm nichrome wire |
||
Product Description
Cr30Ni70 NiCr7030 Electrical Resistance Wire For Heating Elements
Resistance wire is a high-resistance electrical wire that is often found in industrial applications including electrical ovens, toasters, and heating elements.
The two major types of resistance wire are Kanthal and Nichrome wire.
What is a good resistance wire?
Nichrome, a non-magnetic 80/20 alloy of nickel and chromium, is the most common resistance wire for heating purposes because it has a high resistivity and resistance to oxidation at high temperatures.
When used as a heating element, it is usually wound into coils.
Main Characteristics of Ni-Cr and Ni-Cr-Fe Electric Heating Alloys
|
Alloy Nomenclature Performance |
Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical Composition | Ni | Rest | Rest | 55-61 | 34-37 | 30-34 |
| Cr | 20-23 | 28-31 | 15-18 | 18-21 | 18-21 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
|
Max. continuous service temp. of element |
1200 | 1250 | 1150 | 1100 | 1100 | |
|
Resistivity at 20ºC (μΩ·m) |
1.09 | 1.18 | 1.12 | 1.00 | 1.04 | |
| Density (g/cm 3 ) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
|
Thermal conductivity (KJ/m·h·ºC) |
60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
|
Coefficient of lines expansion (α×10 -6 /ºC) |
18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
|
Melting point (approx.) (ºC) |
1400 | 1380 | 1390 | 1390 | 1390 | |
|
Elongation at rupture (%) |
>20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | Austenlte | Austenlte | Austenlte | Austenlte | Austenlte | |
| Magnetic properties | Nonmagnetic | Nonmagnetic | Weak Magnetic | Weak Magnetic | Weak Magnetic | |
| No. | Spool Model | Outer Diameter (d1) |
Trunk Diameter(d2) |
Inner Diameter(d3) |
Inner Height(L2) | Total height (L1) |
Weight of Spool | Rated load weight |
| 1 | DIN 125 | 125mm | 65mm | 20-25mm | 100mm | 120mm | 0.18kg | 2-3kg |
| 2 | DIN 160 | 160mm | 99.3mm | 22.03mm | 129mm | 160mm | 0.3kg | 5-7kg |
| 3 | DIN 200 | 200mm | 125.31mm | 23.06mm | 160mm | 200mm | 0.62-0.66kg | 10-15kg |
| 4 | DIN 250 | 250mm | 160mm | 20.73mm | 160mm | 200mm | 1kg | 20-25kg |
| 5 | NS-4 | 118.83mm | 75.4mm | 21.27mm | 129.33mm | 148.14mm | 2-3kg |
1. How can I get a quotation from you?
You can leave us message or send us a email and we will reply every message in time.
Or we may talk on line by skype & wechat.
And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course. Can send you small piece for you to check quality.
3. What is your delivery time?
A. The time of delivery is usually around 7-25 days according to the products you need.
4. What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L.
L/C is also acceptatble .
5. How can you garantee what I got will be good?
First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.
Also, we accept third-party test.
6. How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from
Looking for resistance wire supplier ? We have a wide selection at good prices to help you get creative. All the resistance wires are quality guaranteed. We are China Origin Factory of resistance wire. If you have any question, please feel free to contact us.
