NiCr Nichrome Electrical Resistance Heating Wire 5.0mm Ribbons NiCr8020

Place of Origin China
Brand Name OEM
Model Number NiCr8020,NiCr6015
Minimum Order Quantity 100 KG
Price USD 1-20 / KG
Packaging Details STANDARD EXPORT PACKAGE
Delivery Time 15-30 WORKING DAYS
Payment Terms L/C, T/T
Supply Ability 25000MT PER YEAR

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name NiCr Nichrome Resistance Heating Wire Ribbons NiCr8020/NiCr6015 Type NiCr8020,NiCr6015
Round Wire 0.05mm-10mm Ribbon Thickness 0.1mm -1.0mm
Ribbon Width 0.5mm - 5.0mm Carbon Content Low Carbon
Condition Bright, Annealed Special Use Furnace, Heater, Resistor, Etc.
High Light

NiCr Nichrome Resistance Heating Wire

,

5.0mm Electrical Resistance Heating Wire

,

Electrical Resistance Wire Ribbons

Leave a Message
Product Description

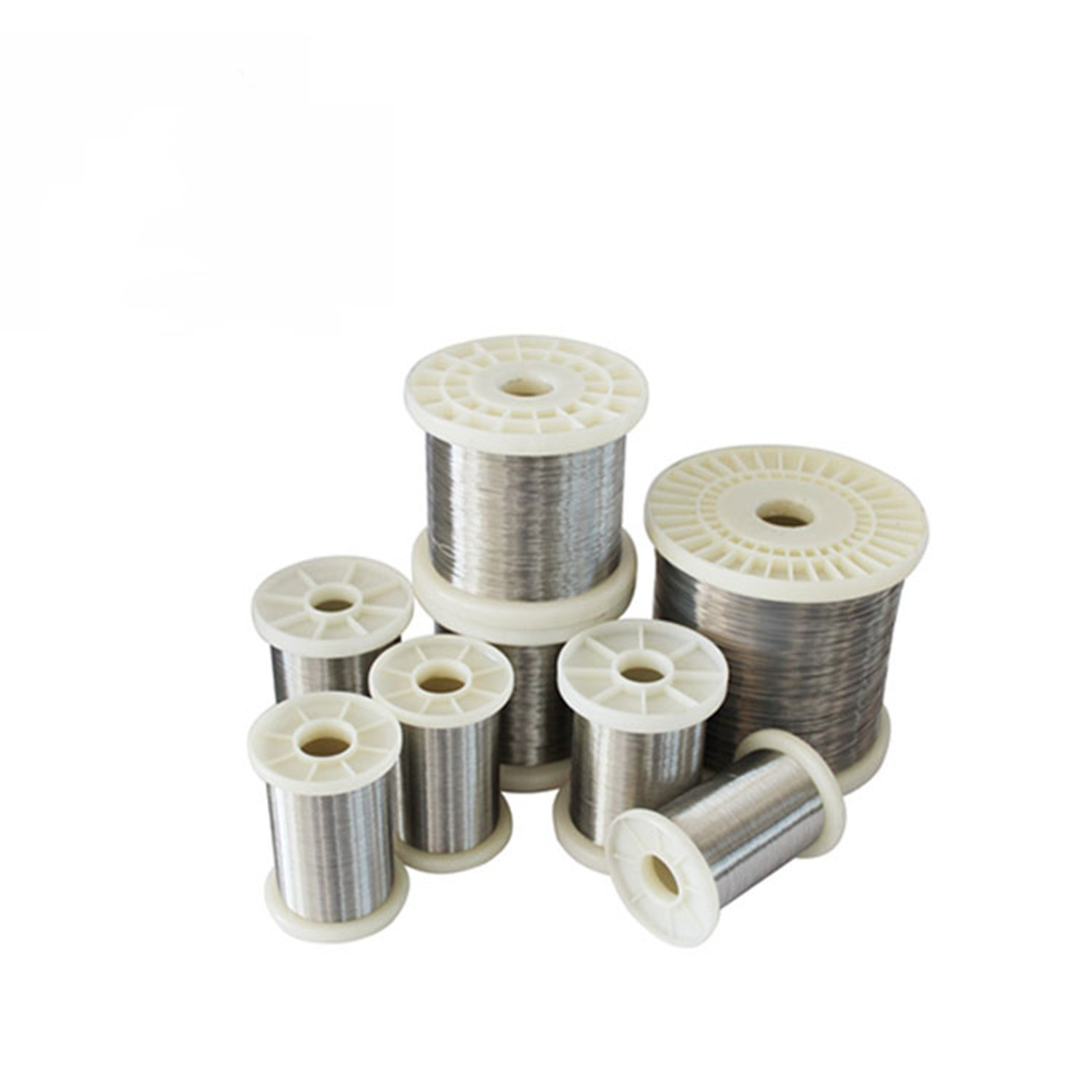

NiCr Nichrome Resistance Heating Wire Ribbons NiCr8020/NiCr6015



Wire Specifications:

- Diameter: 20 Gauge / 0.81mm

- Shape: round

- Alloy: Nichrome 80 (80% Nickel, 19.5% Chromium, 1.45% Tin)

- Length 50 feet (about 15.2 meters).

- Heat treatment annealed (soft)

- Melting temperature 300°F / 1400°C

- Maximum Continuous Operating Temperature: 330°F/1180°C

- Resistance: 0.635 ohm/ft at room temperature



Nichrome 80 Wire has a low temperature resistivity and low change in resistance over its lifetime, ensuring faster heat-up times, more uniform operating temperature, and longer lifetime. Its excellent mechanical stability minimizes element design changes, ensures stretch in rolled form, and eliminates shrinkage, growth, sagging or distortion issues during use.

This wire is used for repair and maintenance of electronic components. Typical applications for Master Wire Supply Nichrome 80 Wire are: Industrial and Hobby Wire Foam Cutter, Ceramics, Home and Industrial Heaters Internal Supports, Diffusion Heaters, Dishwashers, Cooking Plates, Electric Blankets, Hair Dryers, Kerosene Burners, Kettles , refrigerator, rice cooker, tumble dryer, high temperature treatment, glass, steel, electronic industry and electronic industry white jade.



Main Characteristics of Ni-Cr and Ni-Cr-Fe Electric Heating Alloys



Alloy Nomenclature

Performance

Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical Composition Ni Rest Rest 55-61 34-37 30-34
Cr 20-23 28-31 15-18 18-21 18-21
Fe ≤1.0 ≤1.0 Rest Rest Rest

Max. continuous

service temp. of element

1200 1250 1150 1100 1100

Resistivity at 20ºC

(μΩ·m)

1.09 1.18 1.12 1.00 1.04
Density (g/cm 3 ) 8.40 8.10 8.20 7.90 7.90

Thermal conductivity

(KJ/m·h·ºC)

60.3 45.2 45.2 43.8 43.8

Coefficient of lines

expansion (α×10 -6 /ºC)

18.0 17.0 17.0 19.0 19.0

Melting point

(approx.) (ºC)

1400 1380 1390 1390 1390

Elongation at

rupture (%)

>20 >20 >20 >20 >20
Micrographic structure Austenlte Austenlte Austenlte Austenlte Austenlte
Magnetic properties Nonmagnetic Nonmagnetic Weak Magnetic Weak Magnetic Weak Magnetic


NiCr Nichrome Electrical Resistance Heating Wire 5.0mm Ribbons NiCr8020 0



ASTM 304/L Stainless Steel Wire Soft Annealed 0.05-5mm Diameter 0

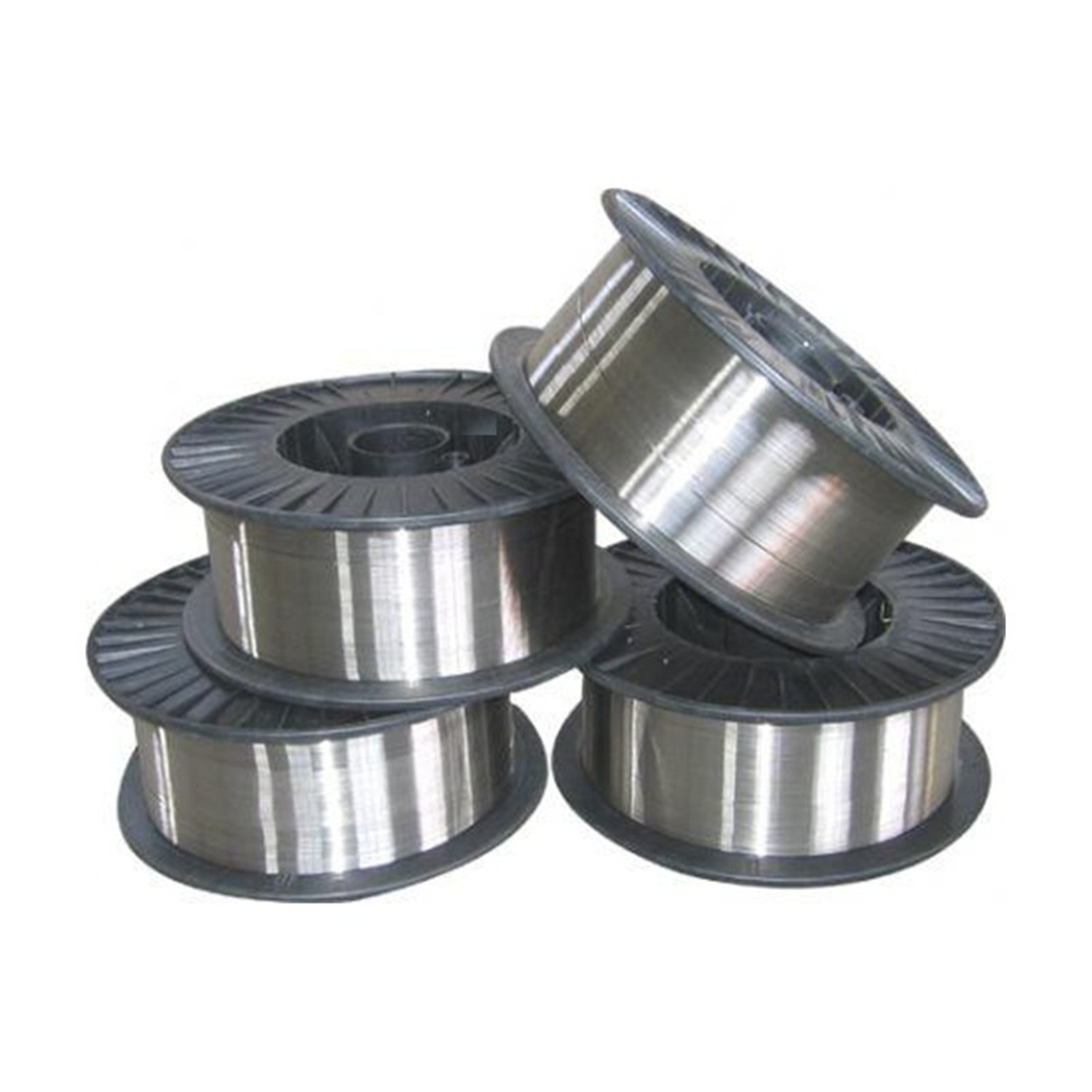

No. Spool Model Outer Diameter
(d1)
Trunk
Diameter(d2)
Inner
Diameter(d3)
Inner Height(L2) Total height
(L1)
Weight of Spool Rated load weight
1 DIN 125 125mm 65mm 20-25mm 100mm 120mm 0.18kg 2-3kg
2 DIN 160 160mm 99.3mm 22.03mm 129mm 160mm 0.3kg 5-7kg
3 DIN 200 200mm 125.31mm 23.06mm 160mm 200mm 0.62-0.66kg 10-15kg
4 DIN 250 250mm 160mm 20.73mm 160mm 200mm 1kg 20-25kg
5 NS-4 118.83mm 75.4mm 21.27mm 129.33mm 148.14mm   2-3kg

ASTM 304/L Stainless Steel Wire Soft Annealed 0.05-5mm Diameter 1






304 Cold Rolled Stainless Steel Coil 2B Surface 0.1-3mm Thickness 3
1. How can I get a quotation from you?
You can leave us message or send us a email and we will reply every message in time.

Or we may talk on line by skype & wechat.
And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course. Can send you small piece for you to check quality.
3. What is your delivery time?
A. The time of delivery is usually around 7-25 days according to the products you need.
4. What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L.

L/C is also acceptatble .
5. How can you garantee what I got will be good?
First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.

Also, we accept third-party test.
6. How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from


Looking for resistance wire supplier ? We have a wide selection at good prices to help you get creative. All the resistance wires are quality guaranteed. We are China Origin Factory of resistance wire. If you have any question, please feel free to contact us.
