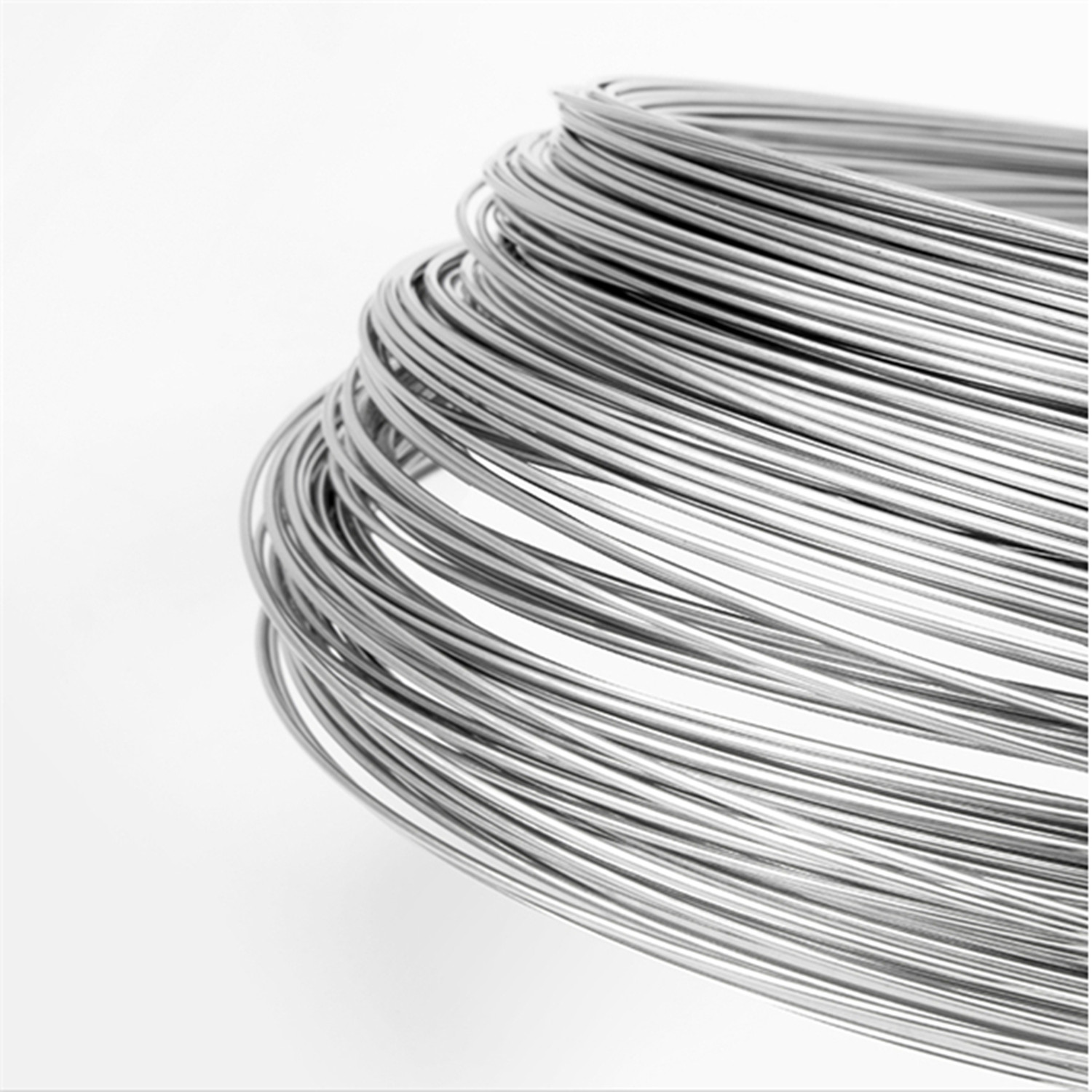

E Cigarette FeCrAl Resistance Wire 1Cr13Al4 Alloy Low Carbon
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | FeCrAl Electrical Resistance Heating Wire 1Cr13Al4 Alloy For E-Cigarette | Type | 1Cr13Al4 |
|---|---|---|---|
| Round Wire | 0.05mm-10mm | Ribbon Thickness | 0.1mm -1.0mm |
| Ribbon Width | 0.5mm - 5.0mm | Carbon Content | Low Carbon |
| Condition | Bright, Annealed | Special Use | E-Cigarette, Resistor, Heater |
| High Light | E Cigarette FeCrAl Resistance Wire,FeCrAl Resistance Wire 1Cr13Al4,1Cr13Al4 Iron Chrome Aluminum Wire |
||
Product Description
FeCrAl Electrical Resistance Heating Wire 1Cr13Al4 Alloy For E-Cigarette
What is FeCrAl wire?
Iron Chrome Aluminum Resistance Alloys
Iron Chrome Aluminum (FeCrAl) alloys are high-resistance materials typically used in applications with maximum operating temperatures up to 1,400°C (2,550°F).
Iron-chromium-aluminum (FeCrAl) alloys are an alloy class typically deployed within industrial applications where high temperature oxidation resistance is needed.
Main Characteristics of Fe-Cr-Al High Resistance and Electric Heating Alloys
|
Alloy Nomenclature
Performance
|
1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Main Chemical Composition | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Cr | opportune | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
| Nb0.5 | Mo1.8-2.2 | |||||||
|
Max. continuous
service temp.
|
950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
|
Resistivity at 20ºC
(μΩ·m)
|
1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density (g/cm 3 ) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
|
Thermal conductivity
(KJ/m·h·ºC)
|
52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | 45.2 | |
|
Coefficient of lines
expansion (α×10 -6 /ºC)
|
15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |
| Melting point
(approx.) (ºC)
|
1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Tensile strength (N/mm 2 ) |
580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
| Elongation atrupture (%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |
| Variation of area (%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
| Repeat bending frequency (F/R) |
>5 | >5 | >5 | >5 | >5 | >5 | >5 | |
|
Hardness (H.B.)
|
200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
|
continuous service
time (Hours/ ºC) |
-- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥50/1350 | ≥50/1350 | |
| Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |

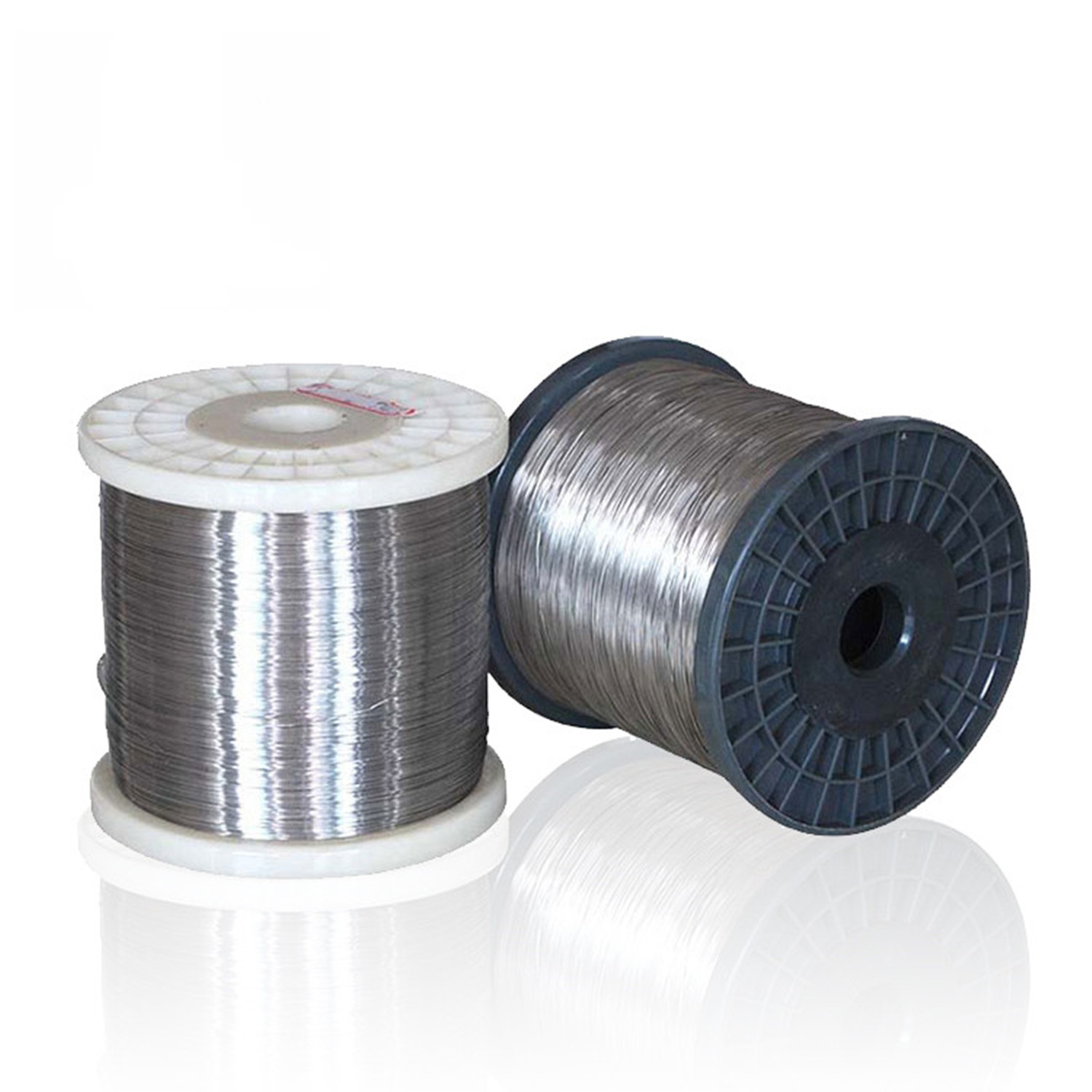

| No. | Spool Model | Outer Diameter (d1) |
Trunk Diameter(d2) |
Inner Diameter(d3) |
Inner Height(L2) | Total height (L1) |
Weight of Spool | Rated load weight |
| 1 | DIN 125 | 125mm | 65mm | 20-25mm | 100mm | 120mm | 0.18kg | 2-3kg |
| 2 | DIN 160 | 160mm | 99.3mm | 22.03mm | 129mm | 160mm | 0.3kg | 5-7kg |
| 3 | DIN 200 | 200mm | 125.31mm | 23.06mm | 160mm | 200mm | 0.62-0.66kg | 10-15kg |
| 4 | DIN 250 | 250mm | 160mm | 20.73mm | 160mm | 200mm | 1kg | 20-25kg |
| 5 | NS-4 | 118.83mm | 75.4mm | 21.27mm | 129.33mm | 148.14mm | 2-3kg |
1. How can I get a quotation from you?
You can leave us message or send us a email and we will reply every message in time.
Or we may talk on line by skype & wechat.
And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course. Can send you small piece for you to check quality.
3. What is your delivery time?
A. The time of delivery is usually around 7-25 days according to the products you need.
4. What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L.
L/C is also acceptatble .
5. How can you garantee what I got will be good?
First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.
Also, we accept third-party test.
6. How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from
Looking for resistance wire supplier ? We have a wide selection at good prices to help you get creative. All the resistance wires are quality guaranteed. We are China Origin Factory of resistance wire. If you have any question, please feel free to contact us.
