Flexible Hoses Stainless Steel Soft Wire DIN 1.4306 304L 1/4 Hard

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 304/L DIN 1.4301/1.4306 Stainless Steel Soft Wires For Flexible Hoses | Grade | 304/L DIN 1.4301/1.4306 |
---|---|---|---|
Application | Construction,spring,screw,weaving,Manufacturing | Standard | GB,DIN,ASTM,AISI,JIS |
Wire Gauge | 0.05-20mm | Length | No Limited,or As Per Requested |
Si Content (%) | Standard Level | ||
High Light | Stainless Steel Soft Wire DIN 1.4306,Stainless Steel Soft Wire 1/4 Hard,Hardness Stainless Steel Wire 1/4 Hard |
304/L DIN 1.4301/1.4306 Stainless Steel Soft Wires For Flexible Hoses
1/4 Hard is an austenitic stainless steel that has been cold rolled to its 1/4 hard condition.
This increases the metal's attractiveness for mild drawing, stretching and forming operations.
At 1/4 Hard, Type 301 has a tensile strength of 125,000 PSI minimum, and a minimum yield strength of 75,000 PSI.
304 steel has a Rockwell B hardness of 70; for reference, the Rockwell B hardness of copper, a soft metal, is 51.
Simply put, 304 steel is not as hard as some of its stainless steel brothers such as 440 steel (see our article on 440 steel for more information), but still holds its own as a tough general purpose steel.
Soft Annealed Stainless Steel Wire:
mm Dia. | N/mm2 T/S | EL % |
0.05-0.10 | 650-900 | >15 |
0.10-030 | 640-880 | >20 |
0.30-0.60 | 590-860 | >30 |
0.60-1.60 | 540-820 | >30 |
1.60-5.00 | 520-770 | >30 |
Hardness Stainless Steel Wire:
1/4H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 0.05-1.60 | 830 -1180 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 1.60-3.00 | 780 -1130 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 3.00-6.00 | 730 -1080 |
1/2H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316L/sus201/430 | 0.05-1.60 | 1130 -1470 |
Sus304/sus304H/sus316L/sus201/430 | 1.60-3.00 | 1080 -1420 |
Sus304/sus304H/sus316L/sus201/430 | 3.00-6.00 | 1080 -1420 |
3/4H full hardness stainless steel wire | ||
mm Dia. | (N/mm2)T/S | |
WPA3/4 | WPB | |
0.08-0.20 | 1650-1900 | 2150-2400 |
0.23-0.40 | 1600-1850 | 1950-2300 |
0.45-1.00 | 1530-1780 | 1850-2100 |
1.20-2.00 | 1400-1700 | 1650-2000 |
2.30-4.00 | 1230-1570 | 1450-1800 |

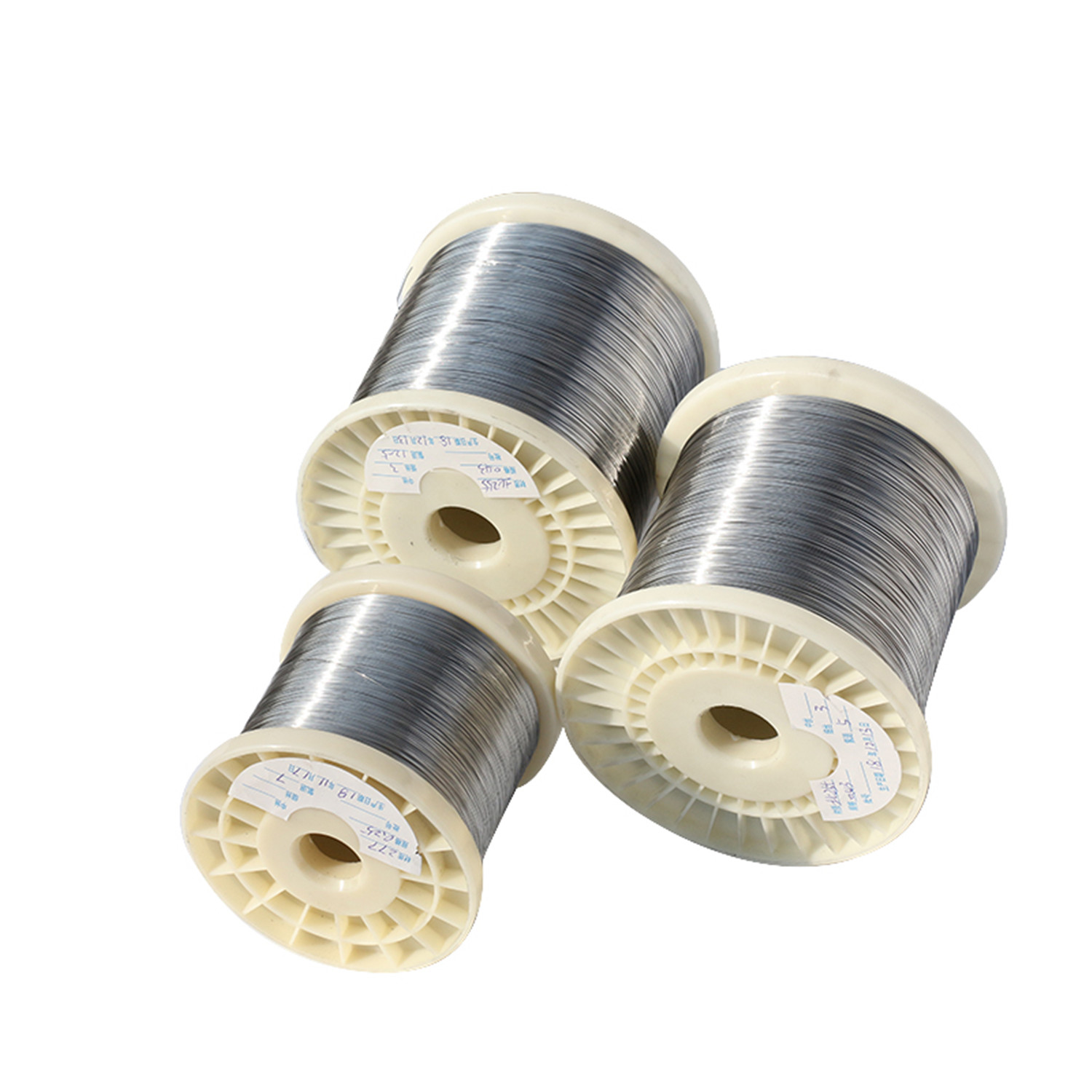

No. | Spool Model | Outer Diameter (d1) |
Trunk Diameter(d2) |
Inner Diameter(d3) |
Inner Height(L2) | Total height (L1) |
Weight of Spool | Rated load weight |
1 | DIN 125 | 125mm | 65mm | 20-25mm | 100mm | 120mm | 0.18kg | 2-3kg |
2 | DIN 160 | 160mm | 99.3mm | 22.03mm | 129mm | 160mm | 0.3kg | 5-7kg |
3 | DIN 200 | 200mm | 125.31mm | 23.06mm | 160mm | 200mm | 0.62-0.66kg | 10-15kg |
4 | DIN 250 | 250mm | 160mm | 20.73mm | 160mm | 200mm | 1kg | 20-25kg |
5 | NS-4 | 118.83mm | 75.4mm | 21.27mm | 129.33mm | 148.14mm | 2-3kg |
1. How can I get a quotation from you?
You can leave us message or send us a email and we will reply every message in time.
Or we may talk on line by skype & wechat.
And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course. Can send you small piece for you to check quality.
3. What is your delivery time?
A. The time of delivery is usually around 7-25 days according to the products you need.
4. What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L.
L/C is also acceptatble .
5. How can you garantee what I got will be good?
First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.
Also, we accept third-party test.
6. How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from
Looking for ideal stainless steel wire supplier ? We have a wide selection at good prices to help you get creative. All the stainless steel wires are quality guaranteed. We are China Origin Factory of Customized SS wire. If you have any question, please feel free to contact us.
