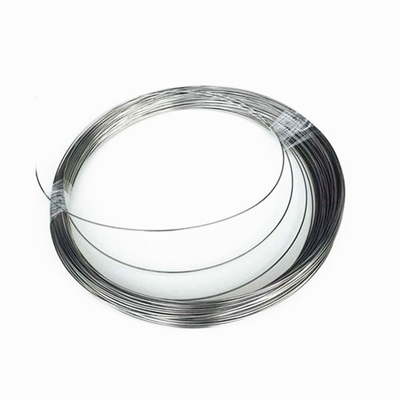

High Tensile Stainless Steel Wire AISI SUS ASTM 316L SS Wire 1mm 2mm 4mm

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | High Tensile Stainless Steel Wire AISI SUS ASTM 316L SS Wire 1mm 2mm 4mm | Grade | 316L |
---|---|---|---|
Standard | GB,DIN,ASTM,AISI,JIS | Wire Gauge | 0.05-20mm |
Length | No Limited,or As Per Requested | Si Content (%) | Standard Level |
Application | Spring, Screw, Manufacturing, Weaving | ||
High Light | High Tensile AISI Stainless Steel Wire,High Tensile AISI Stainless Steel Wire,2mm 316L Stainless Steel Wire |
High Tensile Stainless Steel Wire AISI SUS ASTM 316L SS Wire 1mm 2mm 4mm
Applications
Our wire is used in a wide range of industries and applications, some of the key ones are construction, spring manufacture, wire forming, cold heading, medical instruments, automotive and architectural.
Specific types of wire supplied see below:
- Tying wire.
- Cold heading wire.
- Architectural wire.
- Welding wire.
- Shaped Wire.
Sizes
Our standard stock range of wire diameters varies from 0.05mm up to 10.00mm diameter, above that we also have stocks in cut lengths, we can supply up to 25mm dia in coil form.
Tensile
The wires are manufactured to suit our customers and industry standard applications so at one end we have very soft wires that are formable by hand with tensile strengths of around 500 – 600 N/mm2 at the other end of the scale we keep wires with a tensile strength above 1600 N/mm2.

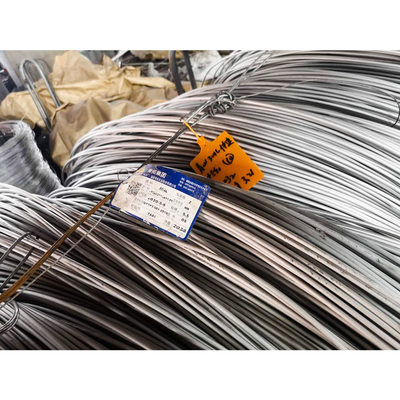

Packaging
Our wire can be supplied in coils from 0.5 kgs up 1000 kgs all in one complete coil dependent on diameter. Material can be supplied on carrier less cores, formers or spools. We can supply on heat treated pallets and export around the world.
Coatings and finish
Wires can be supplied and many finishes and coatings as required, from bright finishes to dull, suitable for electro polishing or with extra lubricants and coatings to suit the secondary processing.
Soft Annealed Stainless Steel Wire:
mm Dia. | N/mm2 T/S | EL % |
0.05-0.10 | 650-900 | >15 |
0.10-030 | 640-880 | >20 |
0.30-0.60 | 590-860 | >30 |
0.60-1.60 | 540-820 | >30 |
1.60-5.00 | 520-770 | >30 |
Hardness Stainless Steel Wire:
1/4H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 0.05-1.60 | 830 -1180 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 1.60-3.00 | 780 -1130 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 3.00-6.00 | 730 -1080 |
1/2H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316L/sus201/430 | 0.05-1.60 | 1130 -1470 |
Sus304/sus304H/sus316L/sus201/430 | 1.60-3.00 | 1080 -1420 |
Sus304/sus304H/sus316L/sus201/430 | 3.00-6.00 | 1080 -1420 |
3/4H full hardness stainless steel wire | ||
mm Dia. | (N/mm2)T/S | |
WPA3/4 | WPB | |
0.08-0.20 | 1650-1900 | 2150-2400 |
0.23-0.40 | 1600-1850 | 1950-2300 |
0.45-1.00 | 1530-1780 | 1850-2100 |
1.20-2.00 | 1400-1700 | 1650-2000 |
2.30-4.00 | 1230-1570 | 1450-1800 |

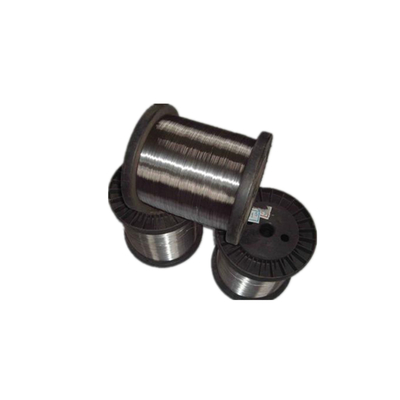

No. | Spool Model | Outer Diameter (d1) |
Trunk Diameter(d2) |
Inner Diameter(d3) |
Inner Height(L2) | Total height (L1) |
Weight of Spool | Rated load weight |
1 | DIN 125 | 125mm | 65mm | 20-25mm | 100mm | 120mm | 0.18kg | 2-3kg |
2 | DIN 160 | 160mm | 99.3mm | 22.03mm | 129mm | 160mm | 0.3kg | 5-7kg |
3 | DIN 200 | 200mm | 125.31mm | 23.06mm | 160mm | 200mm | 0.62-0.66kg | 10-15kg |
4 | DIN 250 | 250mm | 160mm | 20.73mm | 160mm | 200mm | 1kg | 20-25kg |
5 | NS-4 | 118.83mm | 75.4mm | 21.27mm | 129.33mm | 148.14mm | 2-3kg |
1. How can I get a quotation from you?
You can leave us message or send us a email and we will reply every message in time.
Or we may talk on line by skype & wechat.
And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course. Can send you small piece for you to check quality.
3. What is your delivery time?
A. The time of delivery is usually around 7-25 days according to the products you need.
4. What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L.
L/C is also acceptatble .
5. How can you garantee what I got will be good?
First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.
Also, we accept third-party test.
6. How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from
Looking for ideal stainless steel wire supplier ? We have a wide selection at good prices to help you get creative. All the stainless steel wires are quality guaranteed. We are China Origin Factory of Customized SS wire. If you have any question, please feel free to contact us.
