SS 304 316 Stainless Steel Spring Wire Heating Elements Materials 20mm

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | SS 304 316 Stainless Steel Spring Wire Heating Elements Materials | Grade | 304 316 |
---|---|---|---|
Standard | GB,DIN,ASTM,AISI,JIS | Wire Gauge | 0.05-20mm |
Length | No Limited,or As Per Requested | Si Content (%) | Standard Level |
Application | Spring, Screw, Manufacturing, Weaving | ||
High Light | SS 316 Stainless Steel Spring Wire,Stainless Steel 304 Spring Wire 20mm,AISI JIS Stainless Steel Spring Wire |

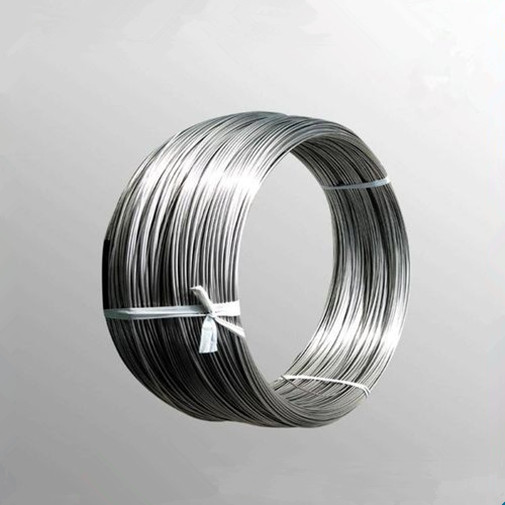

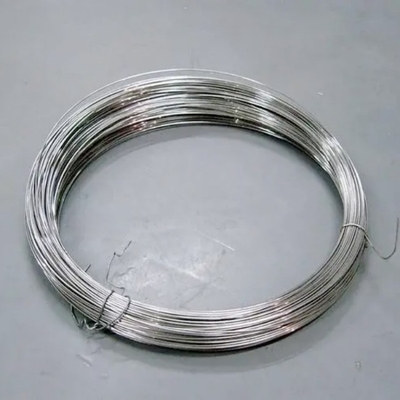

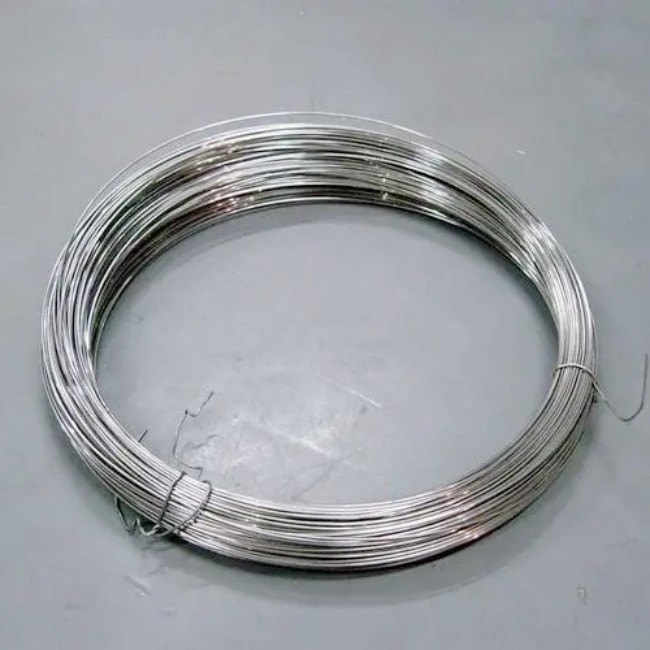

SS 304 316 Stainless Steel Spring Wire Heating Elements Materials
Stainless Steel Rod and Wire feature Type 316 composition, except for Double Spring strength which has an Elgiloy composition. All Stainless Steel Rod and Wire are stress annealed to optimize handling characteristics.
Annealed, Full, and Half are descriptive terms for the way the wire was cured in the drawing process. Each of these techniques will help yield different tensile strengths given in thousands of pounds per square inch (kPSI). The main points to think about are that the higher the kPSI the more brittle the wire is but the better it retains its shape. The high kPSI wire is good for making straight electrodes that need to penetrate through tissue. The low kPSI is a softer more flexible wire, it is less likely to break if you repetitively bend the wire. This low kPSI wire is good for making twisted pair electrodes.
Single Strand Wire: 100 feet (30) per spool.
Soft Annealed Stainless Steel Wire:
mm Dia. | N/mm2 T/S | EL % |
0.05-0.10 | 650-900 | >15 |
0.10-030 | 640-880 | >20 |
0.30-0.60 | 590-860 | >30 |
0.60-1.60 | 540-820 | >30 |
1.60-5.00 | 520-770 | >30 |
Hardness Stainless Steel Wire:
1/4H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 0.05-1.60 | 830 -1180 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 1.60-3.00 | 780 -1130 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 3.00-6.00 | 730 -1080 |
1/2H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316L/sus201/430 | 0.05-1.60 | 1130 -1470 |
Sus304/sus304H/sus316L/sus201/430 | 1.60-3.00 | 1080 -1420 |
Sus304/sus304H/sus316L/sus201/430 | 3.00-6.00 | 1080 -1420 |
3/4H full hardness stainless steel wire | ||
mm Dia. | (N/mm2)T/S | |
WPA3/4 | WPB | |
0.08-0.20 | 1650-1900 | 2150-2400 |
0.23-0.40 | 1600-1850 | 1950-2300 |
0.45-1.00 | 1530-1780 | 1850-2100 |
1.20-2.00 | 1400-1700 | 1650-2000 |
2.30-4.00 | 1230-1570 | 1450-1800 |

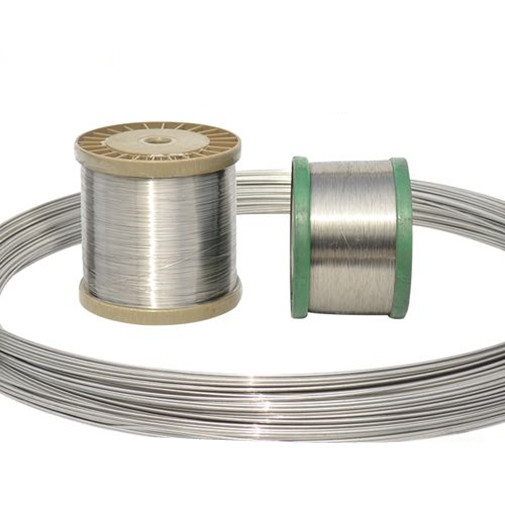

No. | Spool Model | Outer Diameter (d1) |
Trunk Diameter(d2) |
Inner Diameter(d3) |
Inner Height(L2) | Total height (L1) |
Weight of Spool | Rated load weight |
1 | DIN 125 | 125mm | 65mm | 20-25mm | 100mm | 120mm | 0.18kg | 2-3kg |
2 | DIN 160 | 160mm | 99.3mm | 22.03mm | 129mm | 160mm | 0.3kg | 5-7kg |
3 | DIN 200 | 200mm | 125.31mm | 23.06mm | 160mm | 200mm | 0.62-0.66kg | 10-15kg |
4 | DIN 250 | 250mm | 160mm | 20.73mm | 160mm | 200mm | 1kg | 20-25kg |
5 | NS-4 | 118.83mm | 75.4mm | 21.27mm | 129.33mm | 148.14mm | 2-3kg |
1. How can I get a quotation from you?
You can leave us message or send us a email and we will reply every message in time.
Or we may talk on line by skype & wechat.
And you can also find our contact information on contact page.
2. Can I get samples before order?
Yes, of course. Can send you small piece for you to check quality.
3. What is your delivery time?
A. The time of delivery is usually around 7-25 days according to the products you need.
4. What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L.
L/C is also acceptatble .
5. How can you garantee what I got will be good?
First of all, the material origin in TISCO, JISCO, etc and we can offer MTC from the steel mill.
Also, we accept third-party test.
6. How do you make our business long-term and good relationship?
A. We keep good quality and competitive price to ensure our customers benefit ;
B. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from
Looking for ideal stainless steel wire supplier ? We have a wide selection at good prices to help you get creative. All the stainless steel wires are quality guaranteed. We are China Origin Factory of Customized SS wire. If you have any question, please feel free to contact us.
