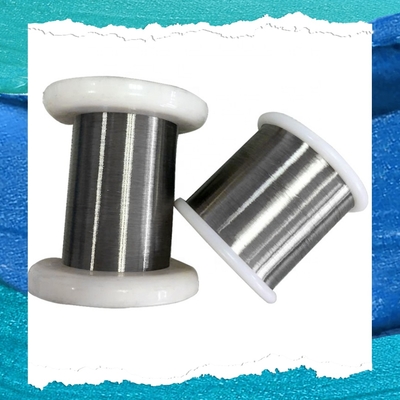

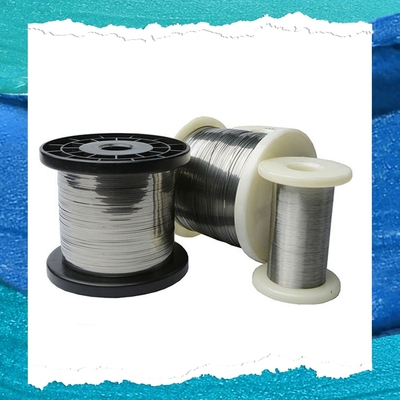

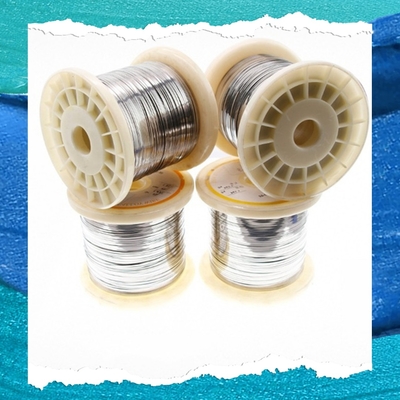

Soft Annealed Bright Stainless Steel Wire 0.5-10mm 304 316 410 SS Wire

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDurability | Excellent | Application | Spring, Screw, Manufacturing, Weaving |
---|---|---|---|
Heat Resistance | Excellent | Length | No Limited,or As Per Requested |
Corrosion Resistance | Excellent | Material | Stainless Steel |
Flexibility | Excellent | Diameter | 0.1-20MM |
Product Description:
Stainless Steel Wire is composed of a metal alloy that contains chromium, nickel, and other elements. It is highly resistant to corrosion and heat, with excellent mechanical properties. It is widely used in a variety of applications, such as fishing wire, spring, screw, manufacturing, and weaving. Our stainless steel wire is available in various lengths and sizes, and can be customized according to customer requirements. The standard specifications we offer include GB, DIN, ASTM, AISI, and JIS. We also offer a variety of finishes, including black matt and bright. Our 316 SS wire is ideal for marine environments due to its superior resistance to corrosion and heat.
Features:
- Product Name: Stainless Steel Wire
- Material: Stainless Steel
- Diameter: 0.1-20MM
- Application: Spring, Screw, Manufacturing, Weaving
- Standard: GB,DIN,ASTM,AISI,JIS
- Flexibility: Excellent
- Special Feature: SS 304 Wire, 1MM Stainless Steel Wire, Austenitic Stainless Steel Wire
Technical Parameters:
Property | Value |
---|---|
Material | 1MM Stainless Steel Wire, 316 SS Wire, 316 SS Wire, AISI 316 Wire |
Length | No Limited,or As Per Requested |
Shape | Wire |
Finish | Black Matt,bright |
Application | Spring, Screw, Manufacturing, Weaving |
Heat Resistance | Excellent |
Corrosion Resistance | Excellent |
Flexibility | Excellent |
Durability | Excellent |
Standard | GB,DIN,ASTM,AISI,JIS |
Applications:
Customization:
We provide custom Stainless Steel Wire services with the following properties:
- Brand Name: TSINGSHAN, TISCO
- Model Number: 201 304 316L 410 310S 2205
- Place of Origin: China
- Certification: SGS, CE
- Minimum Order Quantity: 1 MT
- Price: USD998
- Packaging Details: standard export packaging
- Delivery Time: 7-15 days
- Payment Terms: TT, LC
- Supply Ability: 10000MT/Year
- Material: Stainless Steel
- Shape: Wire
- Diameter: 0.1-20MM
- Durability: Excellent
- Length: No Limited,or As Per Requested
- Special Focus: SS 304 Wire, AISI 430, SS 304 Wire, 316L Wire, 201 Wire
Support and Services:
We offer technical support and service for Stainless Steel Wire. Our experienced team of professionals can provide you with the necessary advice and guidance throughout the entire process. We will assist you in selecting the right type of steel wire for your application, help with installation, and provide ongoing maintenance and repair services. We are also available to answer any questions you may have about our products.
Packing and Shipping:
Stainless steel wire is usually packaged in spools, coils, or straightened lengths. The spooled wire is wound on cardboard or plastic spools and sealed in plastic or shrink wrap. The coiled wire is packed in a cardboard, wooden, or plastic box and sealed with tape. Straightened lengths are usually placed in cardboard boxes and sealed with tape.
The packaging of stainless steel wire is designed to protect the wire from damage during shipping and storage. The packaging should also ensure that the wire is adequately protected from the elements.
Shipping of stainless steel wire is typically done via truck, rail, or air. The wire is loaded in boxes or on pallets to ensure safe transport. The shipping company should be informed of any special requirements for the handling of the wire.
FAQ:
- Q: What is the brand name of this stainless steel wire?
- A: The brand name of this stainless steel wire is TSINGSHAN and TISCO.
- Q: What is the model number of this stainless steel wire?
- A: The model number of this stainless steel wire is 201 304 316L 410 310S 2205.
- Q: Where is this stainless steel wire from?
- A: This stainless steel wire is from China.
- Q: What is the minimum order quantity for this stainless steel wire?
- A: The minimum order quantity for this stainless steel wire is 1 MT.
- Q: What is the price of this stainless steel wire?
- A: The price of this stainless steel wire is USD998.
Soft Annealed Stainless Steel Wire:
mm Dia. | N/mm2 T/S | EL % |
0.05-0.10 | 650-900 | >15 |
0.10-030 | 640-880 | >20 |
0.30-0.60 | 590-860 | >30 |
0.60-1.60 | 540-820 | >30 |
1.60-5.00 | 520-770 | >30 |
Hardness Stainless Steel Wire:
1/4H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 0.05-1.60 | 830 -1180 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 1.60-3.00 | 780 -1130 |
Sus304/sus304H/sus316/sus316L/sus201/430 | 3.00-6.00 | 730 -1080 |
1/2H stainless steel wire | ||
Type | Dia. MM | T/S N/MM2 |
Sus304/sus304H/sus316L/sus201/430 | 0.05-1.60 | 1130 -1470 |
Sus304/sus304H/sus316L/sus201/430 | 1.60-3.00 | 1080 -1420 |
Sus304/sus304H/sus316L/sus201/430 | 3.00-6.00 | 1080 -1420 |
3/4H full hardness stainless steel wire | ||
mm Dia. | (N/mm2)T/S | |
WPA3/4 | WPB | |
0.08-0.20 | 1650-1900 | 2150-2400 |
0.23-0.40 | 1600-1850 | 1950-2300 |
0.45-1.00 | 1530-1780 | 1850-2100 |
1.20-2.00 | 1400-1700 | 1650-2000 |
2.30-4.00 | 1230-1570 | 1450-1800 |
No. | Spool Model | Outer Diameter (d1) |
Trunk Diameter(d2) |
Inner Diameter(d3) |
Inner Height(L2) | Total height (L1) |
Weight of Spool | Rated load weight |
1 | DIN 125 | 125mm | 65mm | 20-25mm | 100mm | 120mm | 0.18kg | 2-3kg |
2 | DIN 160 | 160mm | 99.3mm | 22.03mm | 129mm | 160mm | 0.3kg | 5-7kg |
3 | DIN 200 | 200mm | 125.31mm | 23.06mm | 160mm | 200mm | 0.62-0.66kg | 10-15kg |
4 | DIN 250 | 250mm | 160mm | 20.73mm | 160mm | 200mm | 1kg | 20-25kg |
5 | NS-4 | 118.83mm | 75.4mm | 21.27mm | 129.33mm | 148.14mm | 2-3kg |
